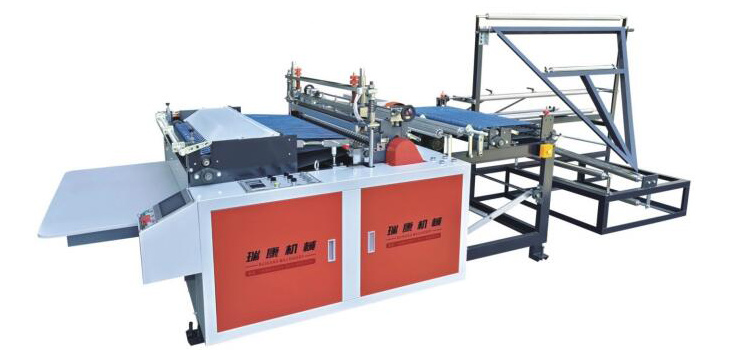

The plastic bubble film machine adopts a one-time molding process to improve production efficiency. The unit has a scientific and reasonable structural design and runs smoothly and reliably. It can perform well whether it is long-term continuous operation or coping with different production tasks. It is easy to operate and maintain, reducing worries.

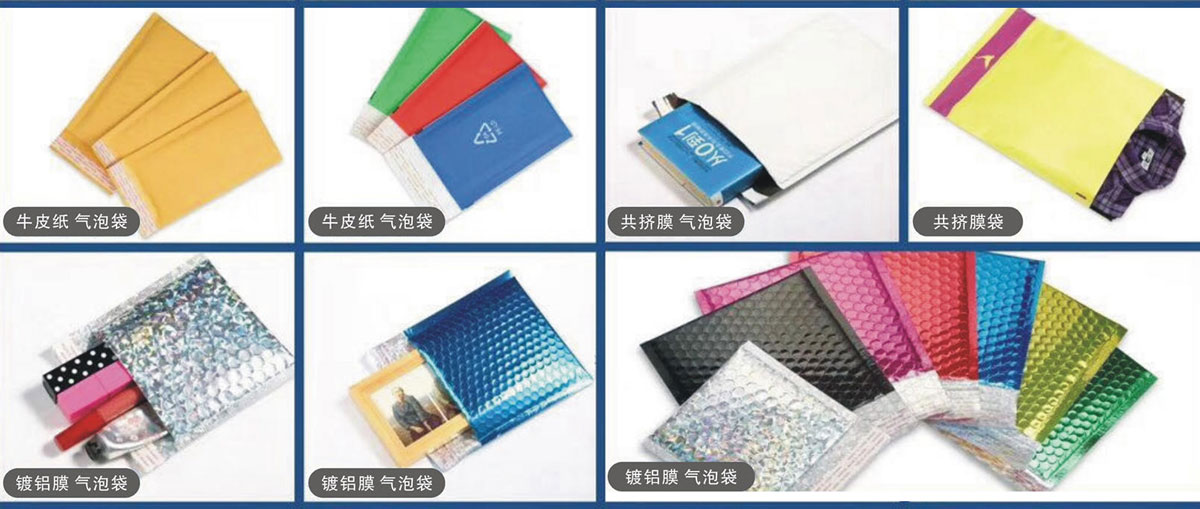

The bubble film produced has good transparency, and the good cushioning effect can effectively protect the items from impact during transportation and storage.
In the use of raw materials, you can choose new materials or make full use of recycled materials to reduce production costs. If you want to produce colored bubble film, you can also add masterbatch to meet the personalized needs of packaging color.
|
Model |
RK-1000 |
RK-1200 |
RK-1500 |
RK-2000 |
|
Screw diameter |
Φ60mm |
Φ65mm |
Φ75mm |
Φ90mm |
|
Film width |
1000mm |
1200mm |
1500mm |
2000mm |
|
Max. Output |
50kg/h |
65kg/h |
80kg/h |
100kg/h |
|
Main motor power |
15kw |
15kw |
18.5kw |
37kw |
|
Power |
28kw |
38kw |
50kw |
80kw |
|
L/D |
30:1 |
30:1 |
30:1 |
30:1 |
|
Power supply |
380/3/4/50(Volt/Ph/Line/Hz) |
|||
|
Weight |
4000kg |
4200kg |
4500kg |
7000kg |
|
Overall Dimenson(LxWxH) |
9.0x3.5x2.5m |
9.5x3.8x2.5m |
10.0x4.0x2.6m |
11.5x4.8x4.0m |
* We will no longer inform youif there is any data change.
Note: ALL equipments supplied by my company are not include attached unit (water. air, electricity)
