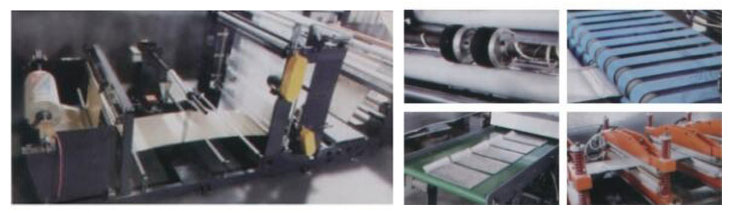

RUIKANG Automatic Bubble Film Envelope Making Machine is a significant innovation in packaging machinery, designed to convert coated kraft paper and PE bubble film into high-quality bubble envelope bags efficiently.
It features an advanced integrated control technology combining electromechanical, pneumatic, and glue spraying systems. The computer-controlled process, from film making to cutting, ensures the production of flat and beautiful bags with consistency and durability.
The user-friendly interface simplifies operation, even for those with limited technical skills. Its design also facilitates easy maintenance, minimizing downtime. The water cooling and hot cutting mechanisms work together to prevent blockage and enhance sealing strength, improving bag quality and usability.
Overall, this machine is a game-changer for the packaging industry, offering advanced technology, easy operation, and efficient production, making it an ideal choice for businesses seeking to enhance their packaging capabilities for various products.
|
Model |
800# |
|
Suitable material |
Lamirat rg kraft paper(85~ 140g)+ air bubble film(25- 150g), tape |
|
Material requirements |
With PE or PP film on surface of kraft paper |
|
MAX.feeding diameter |
aper φ 600mm, ubble film中1 200mm |
|
MAX.feeding width |
Paper≤1500mm, Bubble film φ 1 500mm |
|
MAX.bag length |
≤750mm (including the tongue of bag) |
|
MAX.bag width |
≤700mm |
|
Speed of bag making |
30-90pcs/min (double speed of small bag) |
|
Total power |
30kw |
|
Voltage |
3phase AC380V 50Hz |
|
Machine size(LxWxH) |
18500x21 00x2000mm |
*We will no longer inform you if there is any data change.
