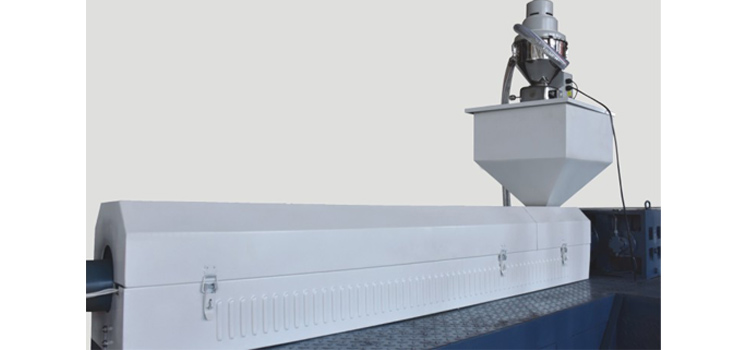

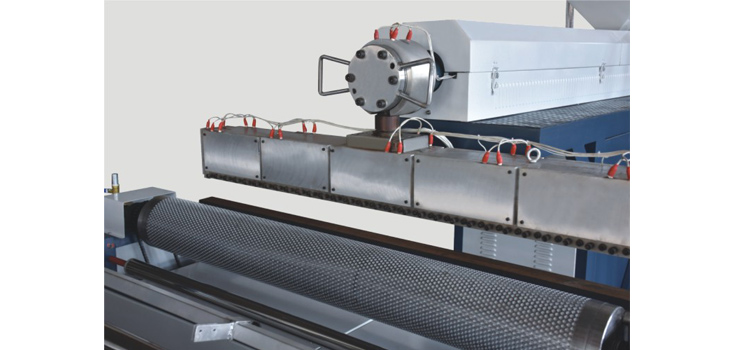

Double Layer Air Bubble Film Making Machine performs well in the field of air bubble film production. Its single screw design not only makes the production process convenient and fast, but also reduces production costs. It is mainly composed of extrusion unit, molding unit, winding unit and electrical control unit. Each unit works closely together to ensure the smooth progress of production.
The machine is controlled by PLC, with a high degree of automation and easy operation, which greatly improves production efficiency. The average production speed can reach 20m/min, which can quickly meet most market needs. The machine can use raw materials such as LDPE, LLPDE and recycled materials to produce air bubble film through a single screw extruder at high temperature.
The specially designed screw can also achieve the use of 100% recycled materials, further reducing costs while being more environmentally friendly. For manufacturers who are looking for low-cost packaging materials and pay attention to environmental protection, the RK-YHPE-ZLA double-layer bubble film machine is a good choice.
|
Model |
Max.Width |
Screw Diameter |
Screw L:D |
Extruder- Motor Power |
Take-up Motor Power |
Vacuum Pump |
Speed |
Power |
|
YHPE -1 000 |
1000mm |
Φ65mm |
34:1 |
18.5kw |
1.5kw |
1.1kw |
5-20m/min |
48kw |
|
YHPE -1 200 |
1200mm |
Φ70mm |
34:1 |
22kw |
1.5kw |
1.1kw |
5-20m/min |
55kw |
|
YHPE -1 600 |
1600mm |
Φ75mm |
34:1 |
30kw |
1.5kw |
1.5kw |
5-20m/min |
65kw |
|
YHPE -1 800 |
1800mm |
Φ80mm |
34:1 |
30kw |
2.2kw |
1.5kw |
5-20m/min |
70kw |
|
YHPE -2 000 |
2000mm |
Φ85mm |
34:1 |
37kw |
2.2kw |
2kw |
5-20m/min |
80kw |
|
YHPE -2 200 |
2200mm |
Φ90mm |
34:1 |
37kw |
2.2kw |
2kw |
5-20m/min |
90kw |
*We will no longer informyou if there is any data change.
1. Chiller
2. Automatic Vacuum Feeder
3. Auto Changing Sieve
4. Blender
5. Scrap Reverse
6. Grinder
7. Auto Rewinder
8. In line perforated unit
9. Huangyan T-die
